1996 Honda CR250 Specifications and Specs
Specifications and workshop reference information for the 1996 Honda CR250, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
🔥 Interactive Build Available
[ + ] symbols to view parts, suppliers and upgrade links.

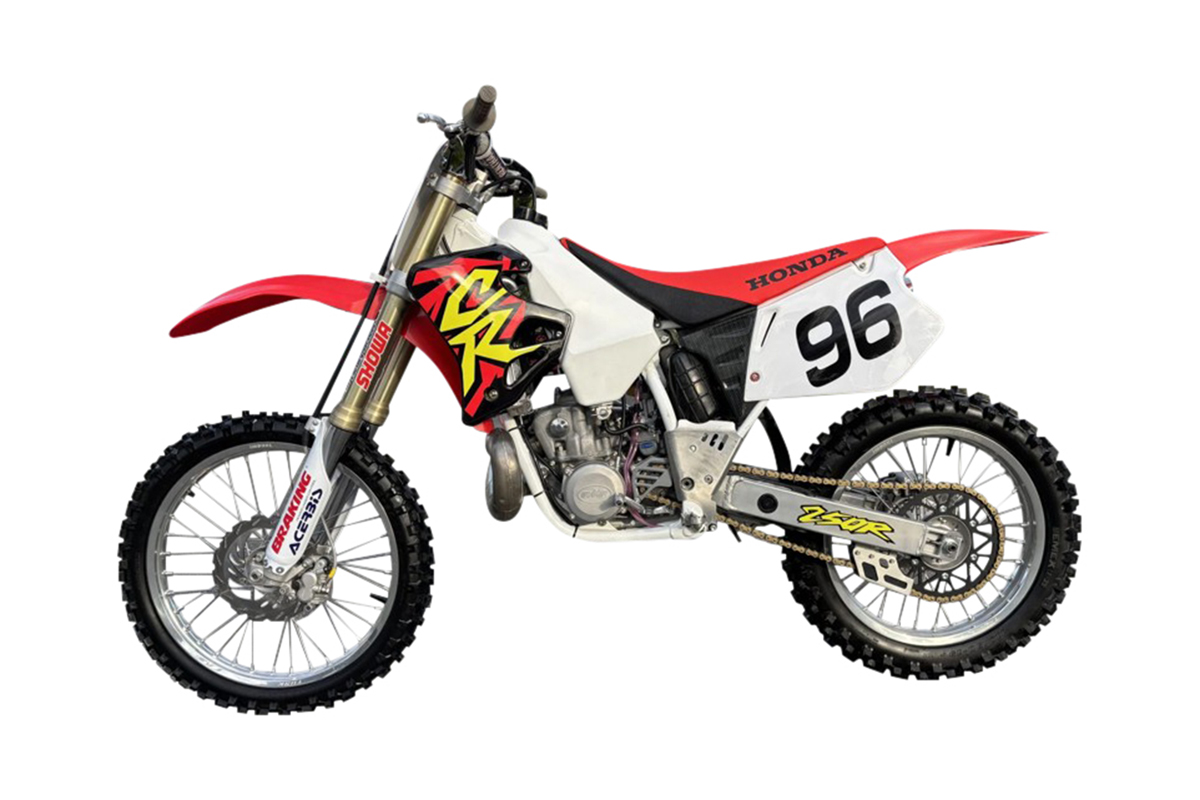

Left Side
Right Side
+
+
+
+
+
+
+
+
+
+
+
+
+
+
General Specifications
Engine Type Liquid-cooled 2-stroke single-cylinder case reed valve Displacement 249 cc Bore × Stroke 66.4 mm × 72.0 mm Compression Ratio 8.9:1 Maximum Power Approx. 48 hp Maximum Torque Carburetor Keihin PJ38 | Replacement Options Lubrication Pre-mix Fuel Mix Ratio 32:1 | Premix Calculator Ignition CDI digital ignition Spark Plug NGK BR8EG Spark Plug Gap 0.7 - 0.8 mm
Transmission
Transmission Type 5-speed close-ratio Clutch Wet multi-plate Primary Reduction 3.136 Final Reduction Chain drive
Dimensions
Overall Length 87.8 in Overall Width 36.6 in Overall Height 50.4 in Wheelbase 58.9 in Ground Clearance 14.2 in Fuel Tank Capacity 2.3 gal
Bearing Sizes
Bearing Finder
Chassis
Frame Type Double cradle steel frame Caster Angle 27.5° Trail 4.5 in Front Suspension Showa conventional cartridge forks | Fork Oil Levels Rear Suspension Pro-Link monoshock Front Suspension Travel 12.2 in Rear Suspension Travel 12.2 in
Brakes & Wheels
250cc Other Specs
