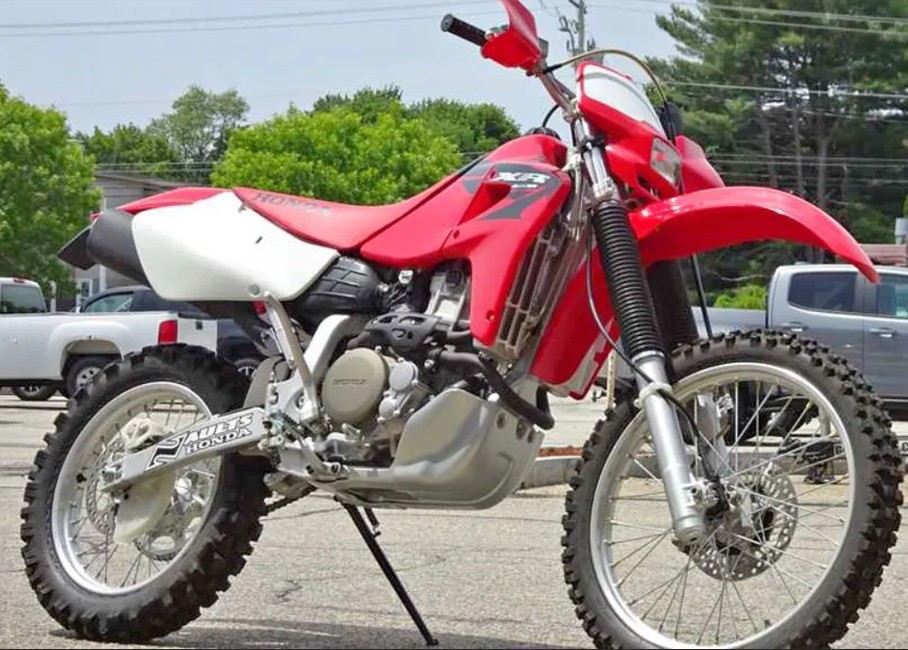

2005 Honda XR650
Specifications and workshop reference information for the 2005 Honda XR650, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Liquid-cooled, 4-stroke, single-cylinder, RFVC |
| Displacement | 649 cc |
| Bore × Stroke | 100.0 × 82.6 mm |
| Compression Ratio | 10.0:1 |
| Maximum Power | Approx. 60 hp |
| Maximum Torque | |
| Carburetor | Keihin |
| Lubrication | Dry sump |
| Fuel Mix Ratio | |
| Ignition | CDI |
| Spark Plug | NGK IFR8H-11 |
| Spark Plug Gap | 1.0–1.1 mm |
| Valve Clearance (Intake) | 0.10 mm |
| Valve Clearance (Exhaust) | 0.12 mm |
Transmission
| Transmission Type | 5-speed manual |
| Clutch | Wet multi-plate |
| Primary Reduction | |
| Final Reduction | Chain drive |
| Overall Reduction | |
Dimensions
| Overall Length | 2,180 mm |
| Overall Width | 830 mm |
| Overall Height | 1,260 mm |
| Wheelbase | 1,480 mm |
| Ground Clearance | 330 mm |
| Fuel Tank Capacity | 10.0 L |
Chassis
| Frame Type | Aluminium twin-spar |
| Caster Angle | |
| Trail | |
| Front Suspension | USD cartridge forks |
| Rear Suspension | Pro-Link monoshock |
| Front Suspension Travel | |
| Rear Suspension Travel | |
Brakes & Wheels
| Front Tire | 90/90-21 |
| Rear Tire | 140/80-18 |
| Front Brake | Disc brake |
| Rear Brake | Disc brake |
