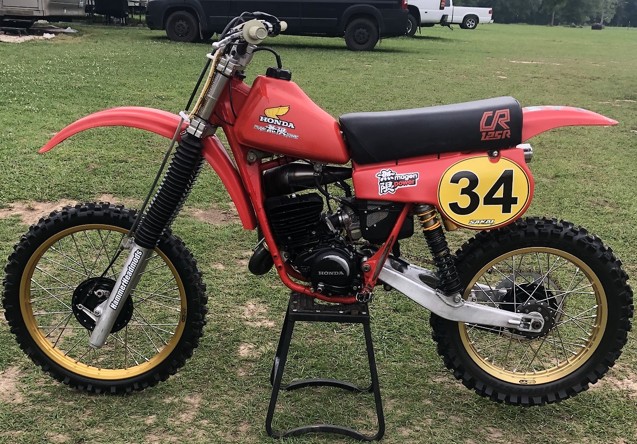

1980 Honda CR125
Specifications and workshop reference information for the 1980 Honda CR125, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Single-cylinder, two-stroke, reed valve |
| Displacement | 123 cc |
| Bore × Stroke | 56 × 50 mm |
| Compression Ratio | Approx. 7.2:1 |
| Maximum Power | ~24–26 hp |
| Maximum Torque | |
| Carburetor | Keihin 30 mm |
| Lubrication | Premix |
| Fuel Mix Ratio | 20:1 – 25:1 |
| Ignition | CDI |
| Spark Plug | NGK equivalent |
| Spark Plug Gap | 0.5 – 0.6 mm |
Transmission
| Transmission Type | 6-speed constant mesh |
| Clutch | Wet multi-plate |
| Primary Reduction | |
| Final Reduction | |
| Overall Reduction | |
Dimensions
| Overall Length | |
| Overall Width | |
| Overall Height | |
| Wheelbase | 1410 mm |
| Ground Clearance | 185 mm |
| Fuel Tank Capacity | 7.5 L |
Chassis
| Frame Type | Steel, twin shock |
| Caster Angle | |
| Trail | |
| Front Suspension | Telescopic forks |
| Rear Suspension | Twin shock |
| Front Suspension Travel | ≈ 220 mm |
| Rear Suspension Travel | ≈ 200 mm |
Brakes & Wheels
| Front Tire | 2.75 – 21 |
| Rear Tire | 3.50 – 18 |
| Front Brake | Drum |
| Rear Brake | Drum |
